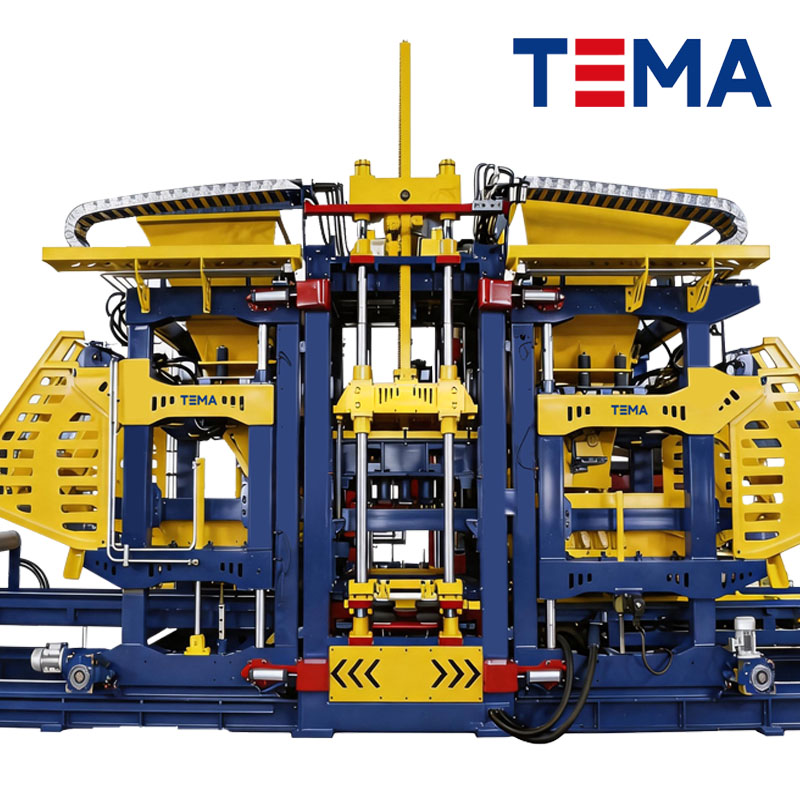

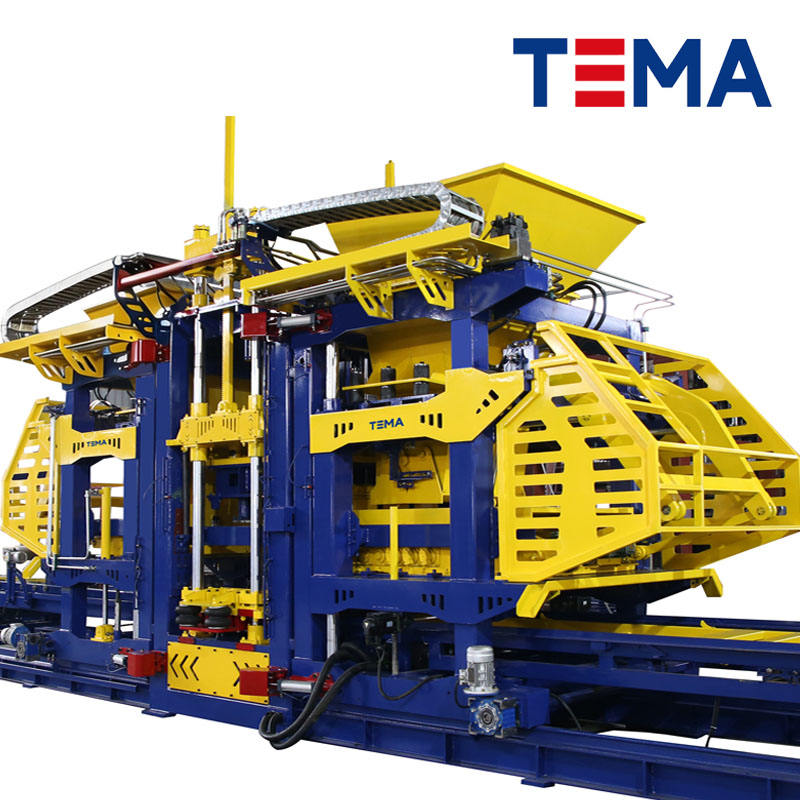

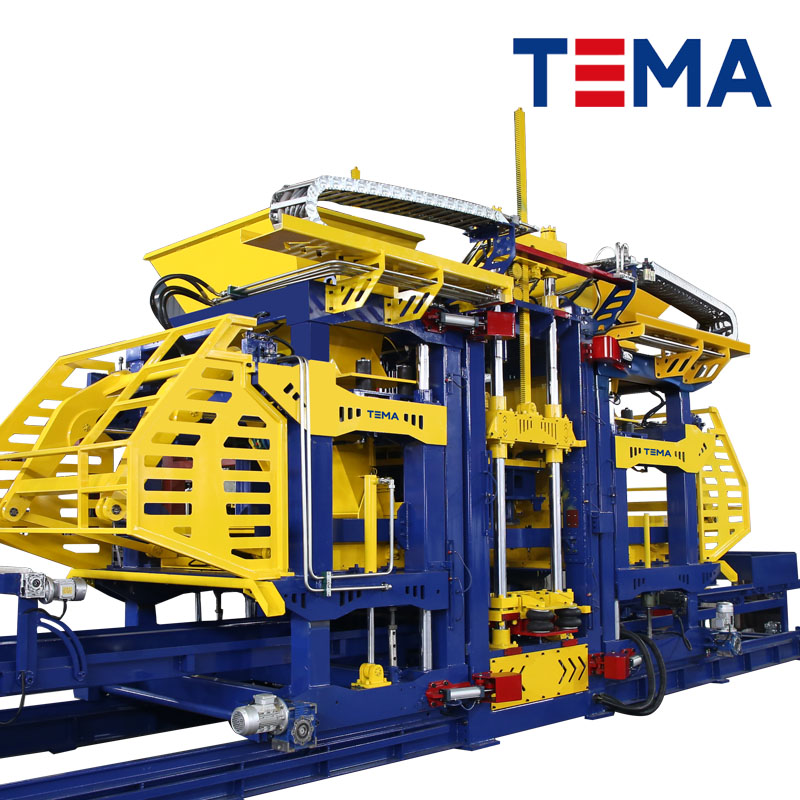

TM12000 State-of-The-Art German Technology Concrete Block Machine
TM12000 is a state-of-the-art concrete block machine, delivering exceptional efficiency and precision. It has pallet sizes of 1200 × 1150mm or 1400 × 950mm which can maximum produce 18,000 pieces of 400×200×200mm hollow blocks or 1,200 square meter paver stone in 8 working hours.
Item No :
TM12000Order(MOQ) :
1 SetPayment :
Bank Transfer, LCProduct Origin :
ChinaColor :
Blue, RedShipping Port :
Xiamen Port, ChinaLead Time :
30 working daysWeight :
16 TonTM12000 State-of-The-Art German Technology Concrete Block Machine
The TM12000 is a state-of-the-art concrete block making machine that leverages advanced German technology to deliver massive production capacity and uncompromising quality. Built with heavy-duty components and an innovative servo-driven vibration system, it is designed for maximum stability, efficiency, and precision in large-scale concrete product manufacturing.
| TM12000 Machine Specifications | |
|---|---|
| Pallet Size: 1200×1150×35 mm or 1400×950×35 mm | Vibration Motors: 4×11 kW or 2×16.5 kW (Italian Physis Servo) |
| Control System: German Siemens PLC Control | Vibration Table: Dynamic and Static Structure Vibration Table |
| Feeder Car Design: Double Swing Arms (Powered by Siemens motor) | Hydraulic System: 30kW Siemens motor, Italian VTOZ valves & American Albert oil pump |
| Products Height: 50-200 mm (Possible to heighten to 500mm) | Cycle Time: 15-20 Seconds |
| Power Consumption: 88 kW | Vibration Force: 135-160 KN |
| Machine Gross Weight: 16 Ton | |
| Block Type & Dimensions | Pieces / Cycle | Production / 8-10 Hours |
|---|---|---|
| 400×200×200mm Hollow Block | 12 Pieces | 14,000 - 18,000 Pieces |
| 400×150×200mm Hollow Block | 16 Pieces | 19,000 - 24,000 Pieces |
| 200×100×60mm Rectangular Paver | 44 Pieces | 44,000 - 66,000 Pieces |
| 225×112.5×60mm Zigzag Paver | 35 Pieces | 35,000 - 52,500 Pieces |
It features a massive production capacity (up to 66,000 rectangular pavers per shift), a robust 16-ton heavy-duty frame, and a large pallet size (up to 1400×950mm). Combined with Siemens PLC and Italian Physis servo motors, it ensures continuous, high-yield operation.
Yes, it is highly versatile. By simply changing the molds, the TM12000 can manufacture a wide variety of products including hollow blocks, solid bricks, rectangular pavers, zigzag pavers, and even curbstones up to 500mm in height (with the optional heightening feature).
The Italian Physis servo motors provide an immense and explosive vibration force of 135-160 KN with precise synchronization. This ensures rapid and thorough compaction of the concrete mixture, resulting in blocks with higher density, superior strength, and exact dimensions.
